3 ½” X 3 ½” Residential Hinges (RH)
Standard Weight Full Mortise (Butt) Hinges
Corners:
1/4” Radius or 5/8” Radius
Material Gauge: 0.09”
Base Metal: Steel, Painted or Plated
Screws:
#9 x ¾” Wood Screws
Screw Hole Pattern: Non-Template
Application: Plain Bearing (Low Frequency) for Wood or Metal
Doors. Reversible for Right Hand or Left Hand Application.
Packaging: Bulk 50 Pair per Carton or Individually Boxed by
the Pair
Product Features: General Information for Ordering Hinges

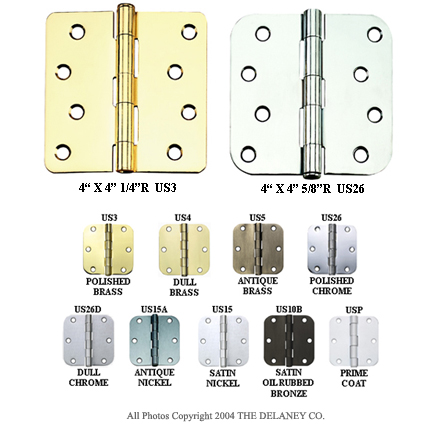

Finishes Available: Dull Brass US4, Primed White USP, Zinc Dichromate US2D,
Bright Brass US3, Satin Nickel US15, Antique Nickel US15A, Antique
Brass US5, Brushed Chrome US26D, Bright Chrome US26, Oil Rubbed Bronze US10B.
|
|
|
|
|
|
Residential Hinge Pair 3 1/2" x 3 1/2" x 1/4" Radius (.087 Gauge)
|
|
|
|
Residential Hinge Pair 3 1/2" x 3 1/2" x 5/8" Radius (.087 Gauge)
|
|
4” X 4” Residential Hinges (RH)
Standard Weight Full Mortise (Butt) Hinges
Corners:
1/4” Radius, 5/8” Radius, or SQ. X 5/8” Radius
Material Gauge: 0.09”
Base Metal:
Steel, Painted or Plated
Screws: #9 x 1” Wood Screws, SQ. X 5/8” Radius are provided with #9 x 1”
WoodScrews and
Screw Hole Pattern: Non-Template
Application: Plain Bearing (Low Frequency) for Wood or
Metal Doors. Reversible for Right Hand or Left Hand Application. SQ. X 5/8” Radius Hinges are Handed for LH or RH Application.
Security
Features: NRP (Non Removable Pin) available
Packaging: Bulk 50 Pair per Carton or Individually Boxed by the
Pair
Product Features: General Information for Ordering Hinges
Finishes Available: Dull Brass US4, Primed White USP, Zinc Dichromate US2D, Bright Brass US3, Satin Nickel US15, Antique Nickel US15A, Antique
Brass US5, Brushed Chrome US26D, Bright Chrome US26, Oil Rubbed Bronze US10B.
|
|
|
|
|
|
Residential Hinge Pair 4" x 4" x 1/4" Radius (.087 Gauge)
|
|
|
|
Residential Hinge Pair 4" x 4" x 5/8" Radius (.087 Gauge)
|
|
|
